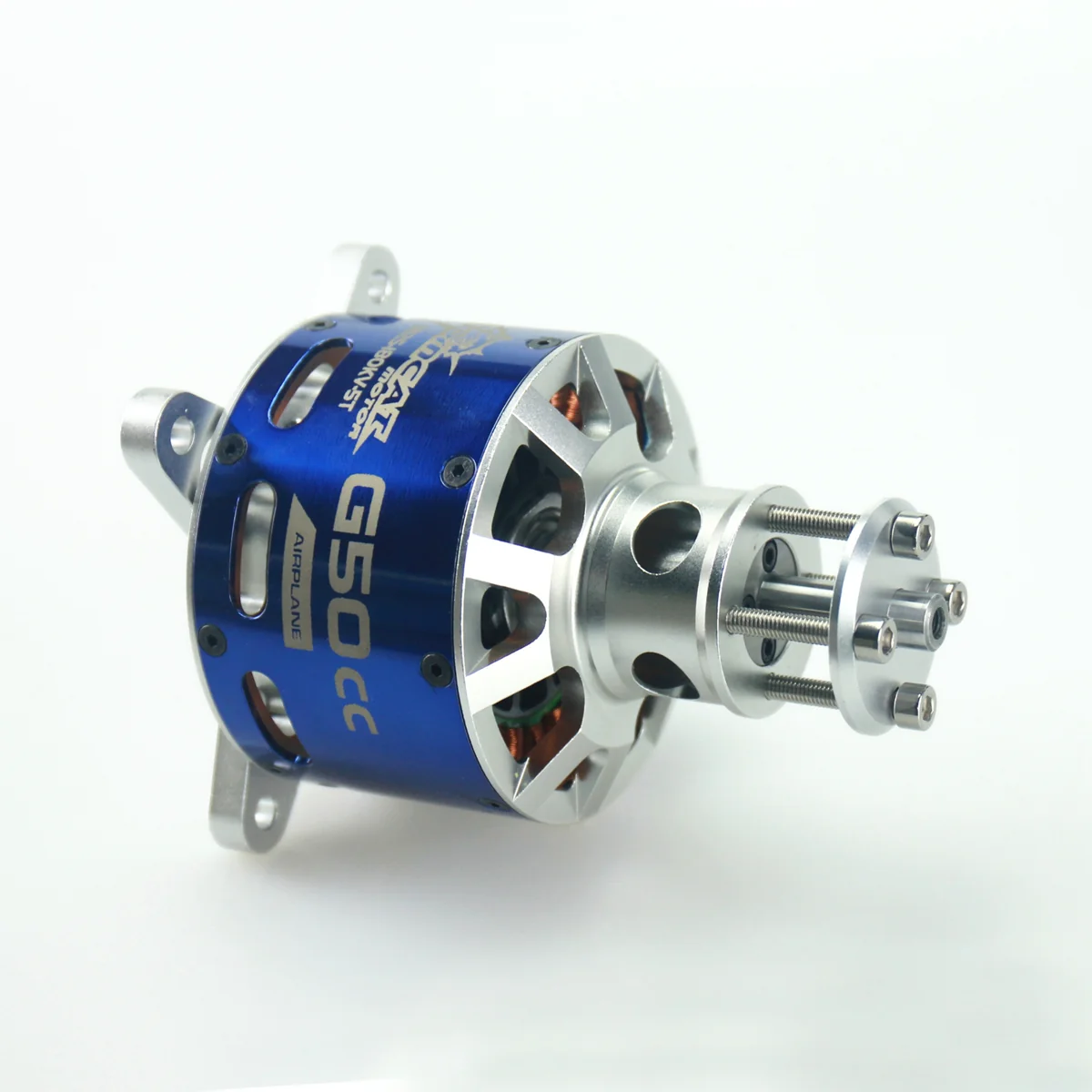

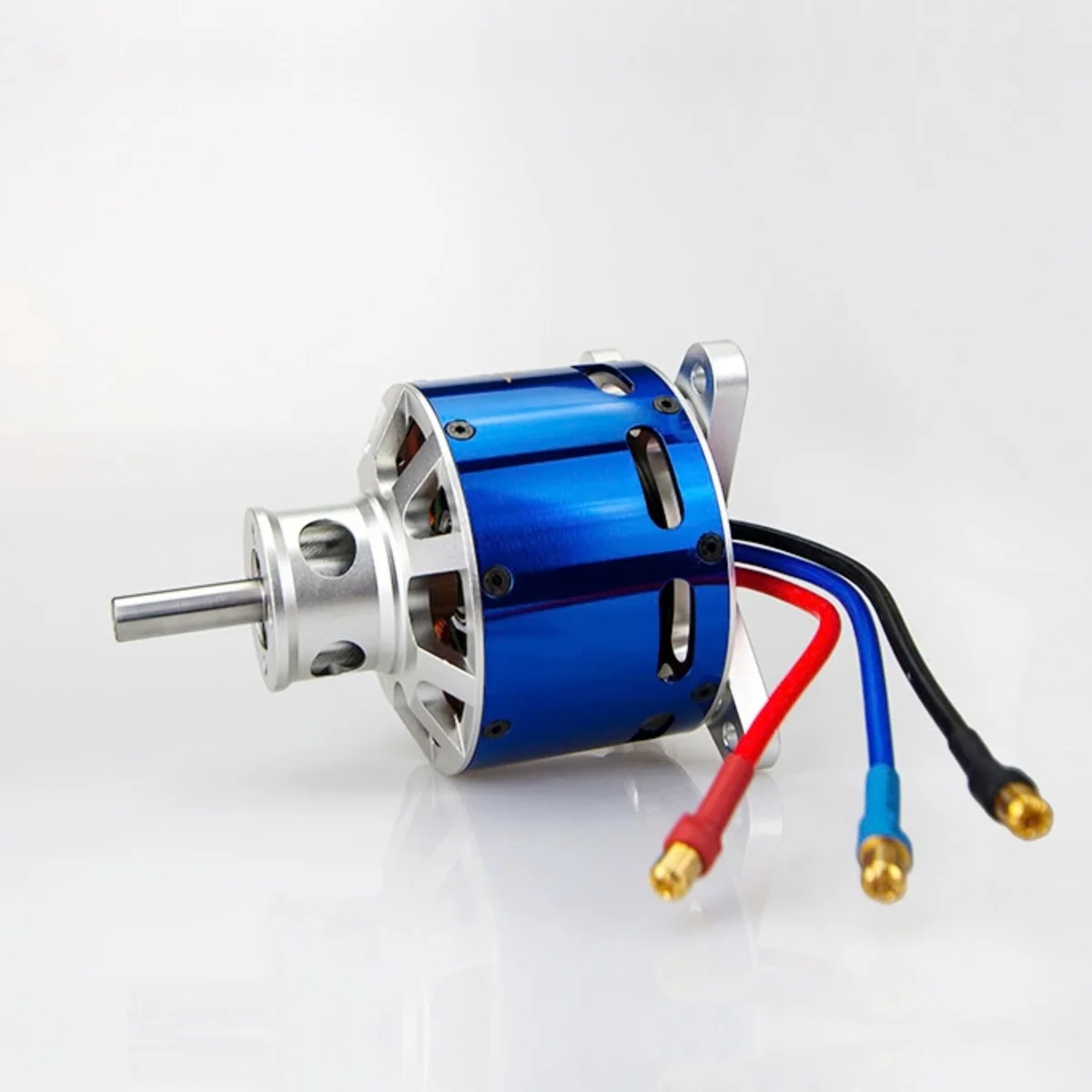

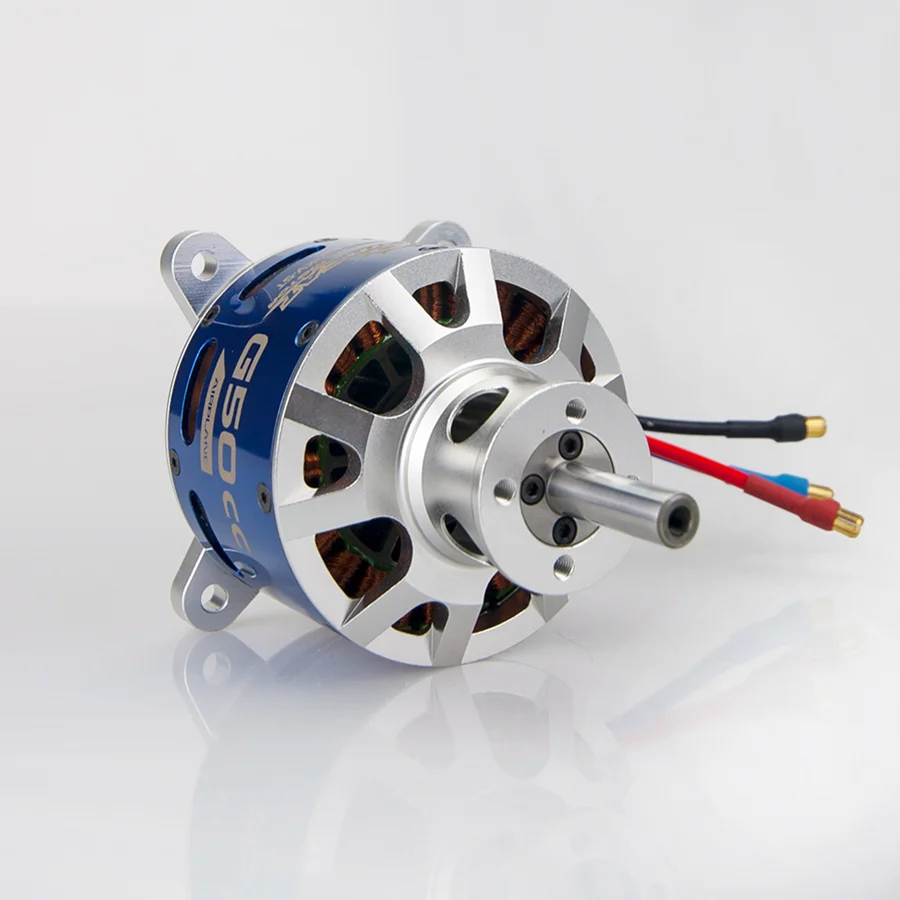

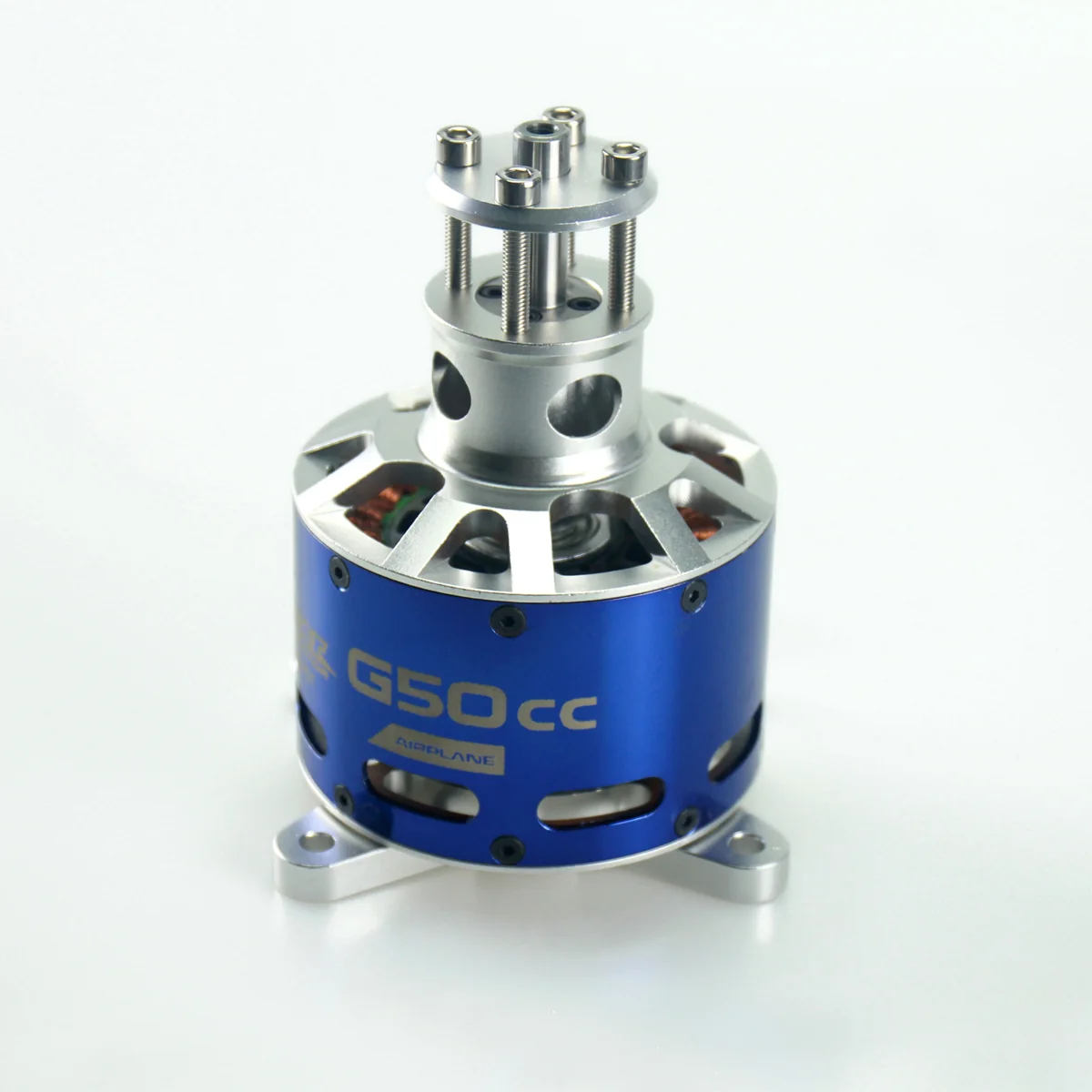

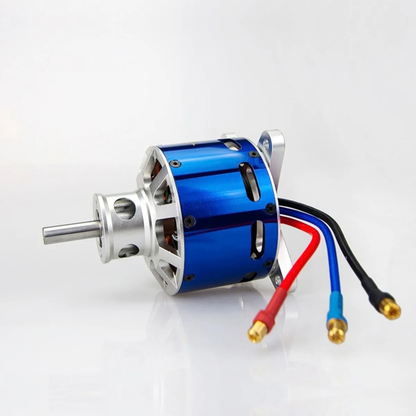

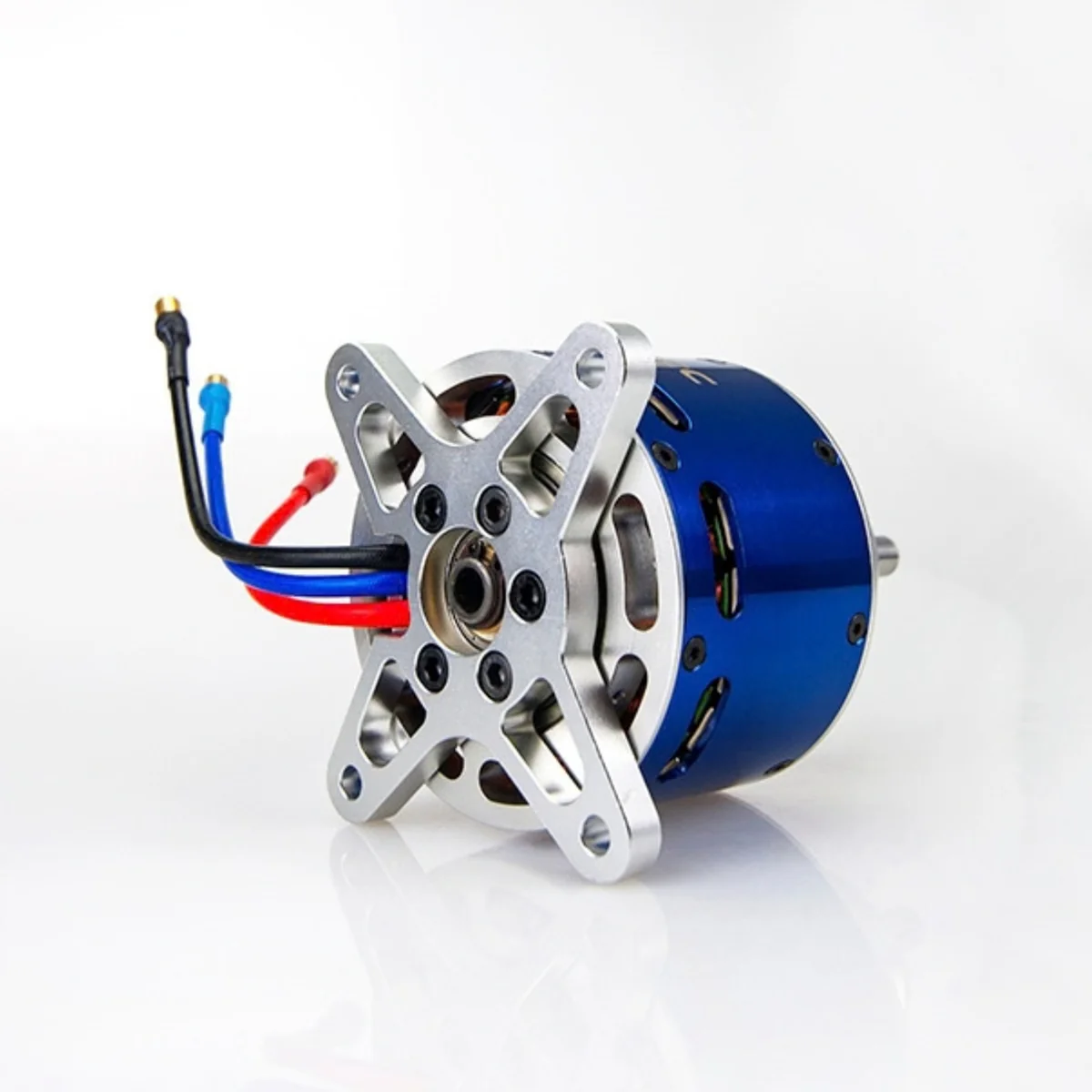

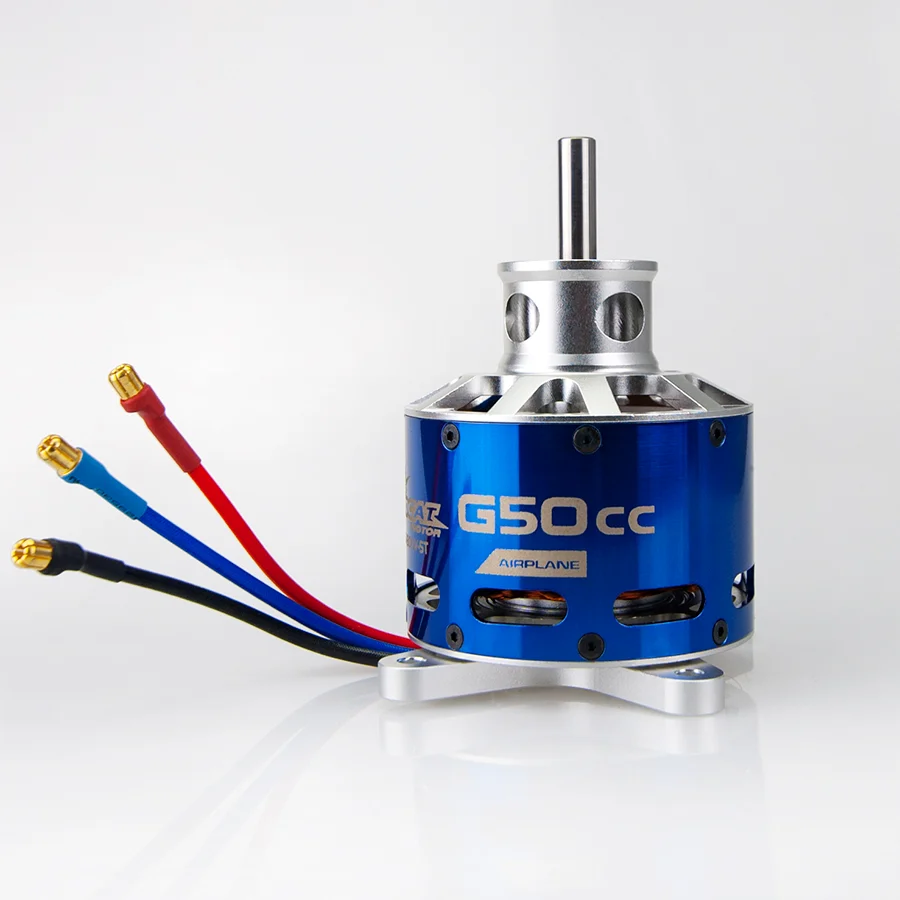

TomCat G50CC 8825-180KV Outrunner Brushless Motor for 50-70CC Gas Plane

TomCat G50cc 8825-180KV Outrunner Brushless Motor is designed to power 50-70cc size gas planes. Run this motor on 12 cell lipos and match it with an ESC of 160 Amps. Motor is rate up to 6000 Watts, with a suggested max amp draw of 130 Amps (150 Amps Burst).

The TomCat G series Gas Planes brushless motor is designed to deliver outstanding performance and reliability. With advanced features and meticulous engineering, it ensures smooth, high-speed rotation and robust performance over extended periods.

High-Strength Aluminum Alloy Casing:

Constructed from high-strength aluminum alloy.
Greatly enhances impact resistance.

Wear-Proof Bearing:

Provides smooth high-speed rotation.
Ensures long-lasting, high-strength performance with excellent concentricity.

Heat-Resistant Magnet Wire:

Utilizes 240° heat-resistant magnet wire.
Treated with vacuum impregnation to enhance heat conduction and resistance.
Prolongs the motor's service life.

High Conductivity Silicon Steel Sheets:

Made in Japan.
Offers superior magnetic conductivity, enhancing motor efficiency.

N45H Magnets:

Resistant to demagnetization even at high temperatures.
Ensures reliable high torque output under extreme conditions.

Optimized Heat Dissipation:

Innovative design facilitates efficient heat dissipation.
Enables consistent high power output and reliable performance.

Dynamic Balancing:

Rigorous dynamic balancing tests reduce vibration and noise.
Ensures quiet and stable high-speed operation.

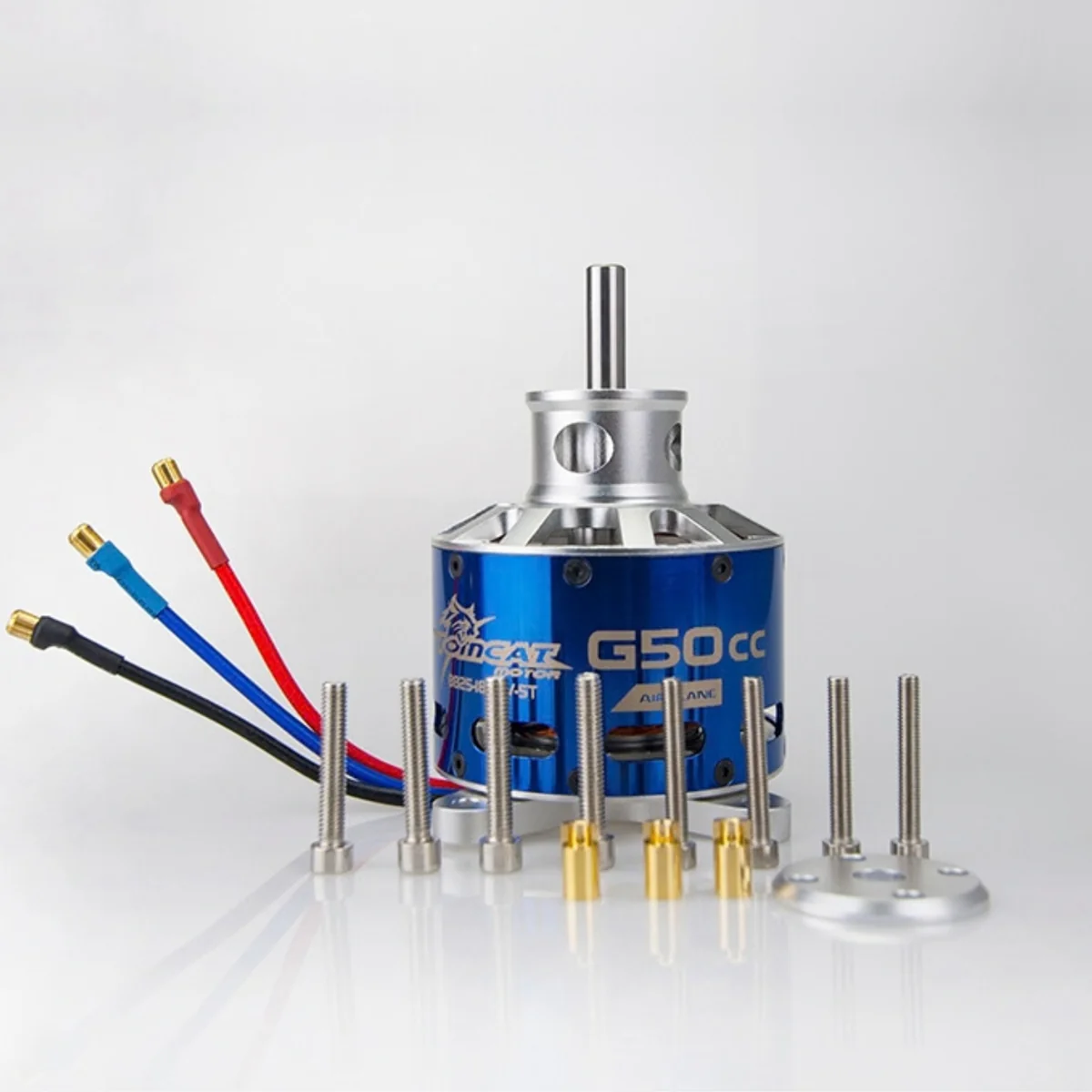

Versatile Accessories:

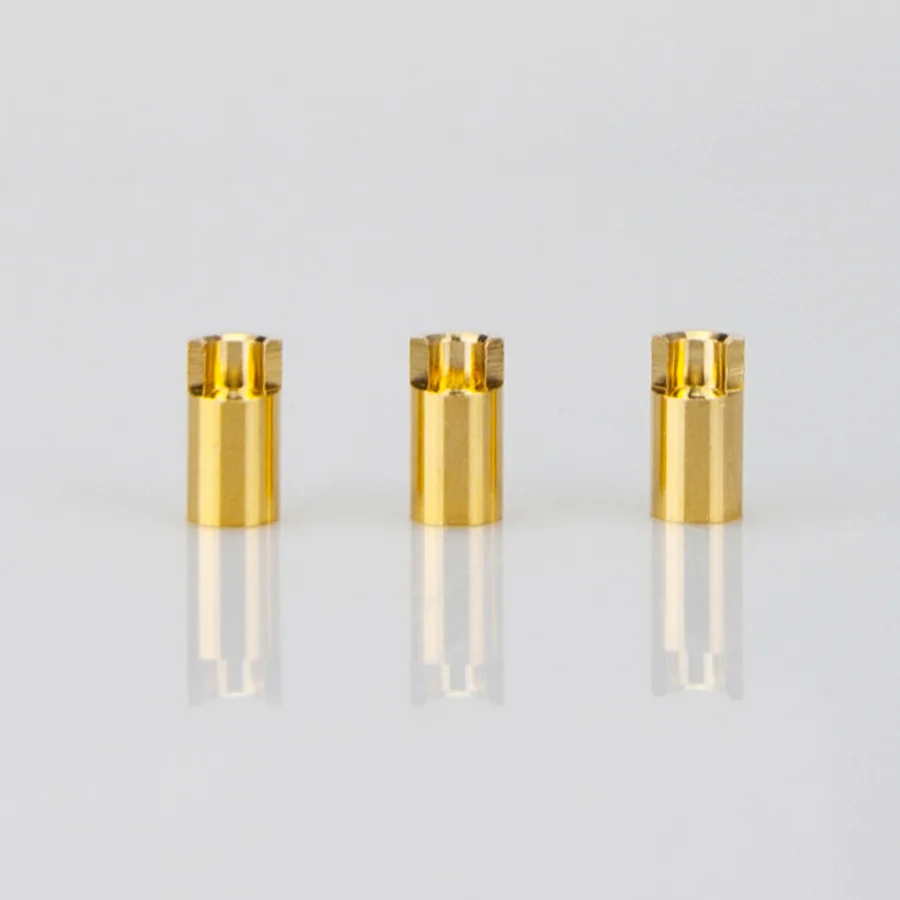

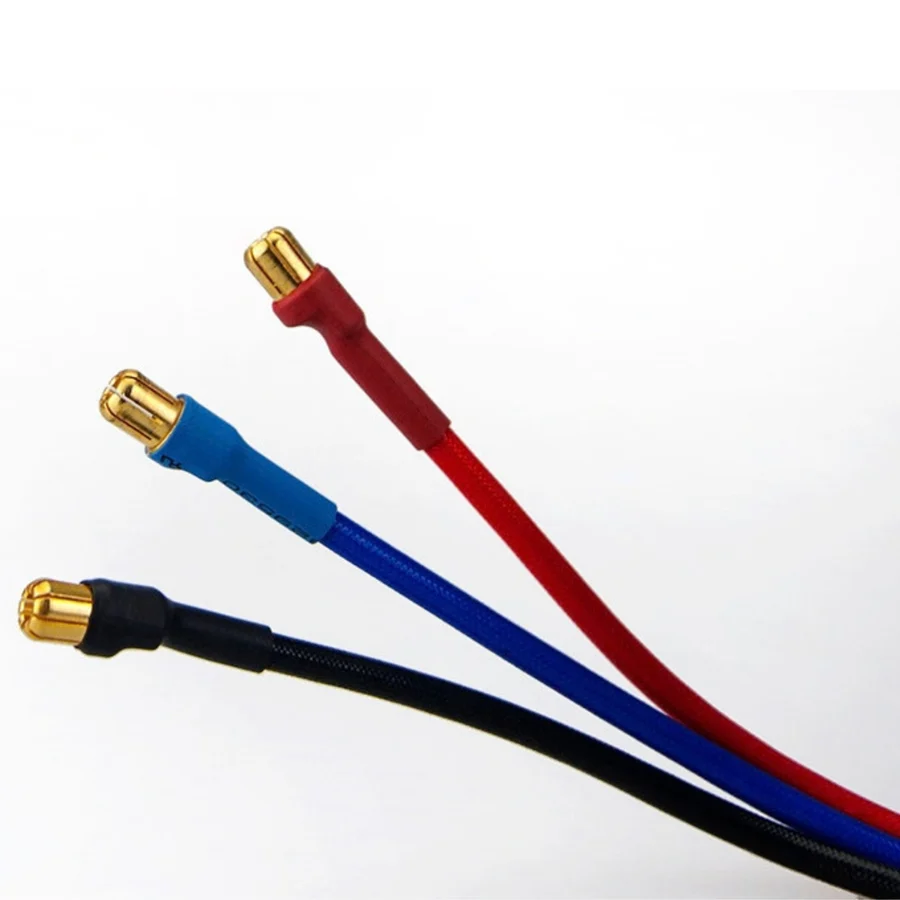

Includes a 75cm extension cord in addition to the 10cm assembled wire for flexible motor connections.
Rich set of accessories meets various installation needs.
Guarantees high-quality and high-performance operation.

Enhanced Compatibility:

When paired with Skylord series ESC, the TomCat brushless motor excels in Balso EP airplanes.
Delivers excellent performance and an exceptional flying experience.

Experience the cutting-edge engineering of the TomCat motor, where precision, power, and performance converge to exceed your expectations.

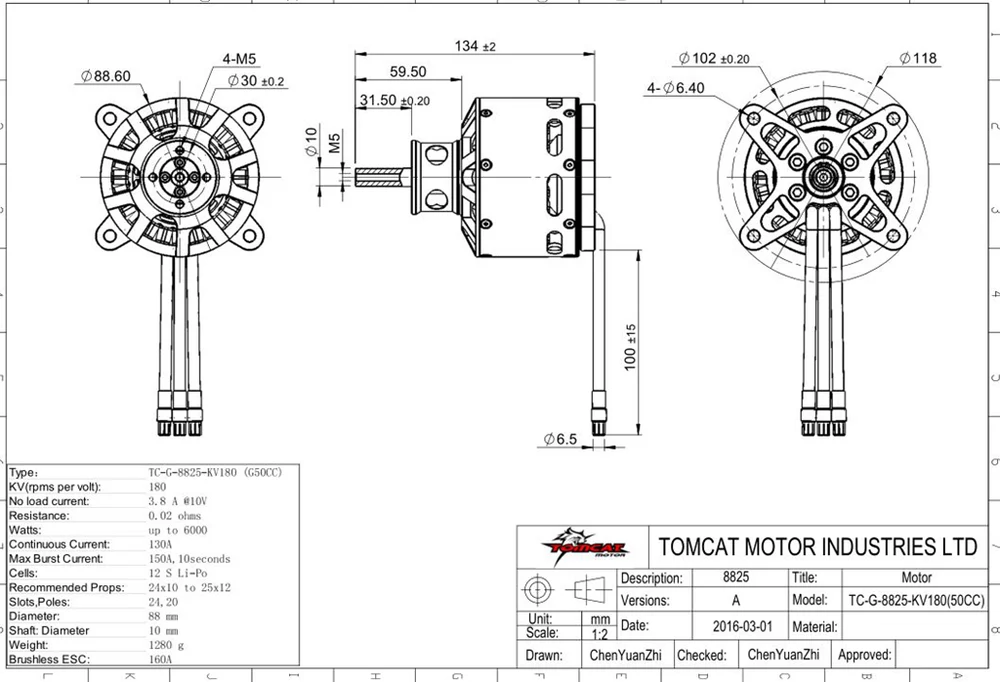

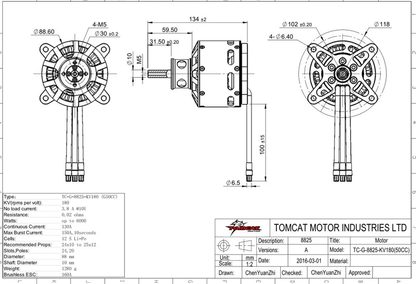

Specifications

Type: TC-G50cc-8825-KV180 (G50cc)
KV(rpms per volt): 180
No load current: 3.8A @10V
Resistance: 0.02 ohms
Watts: up to 6000
Continuous Current: 130A
Max Burst Current: 150A,10seconds
Cells: 12S Li-Po
Recommended Props: 24x10 to 25x12
Slots,Poles: 24,20
Diameter: 88 mm
Diameter of Shaft: 10 mm
Weight: 1280g
Brushless ESC: 160A
