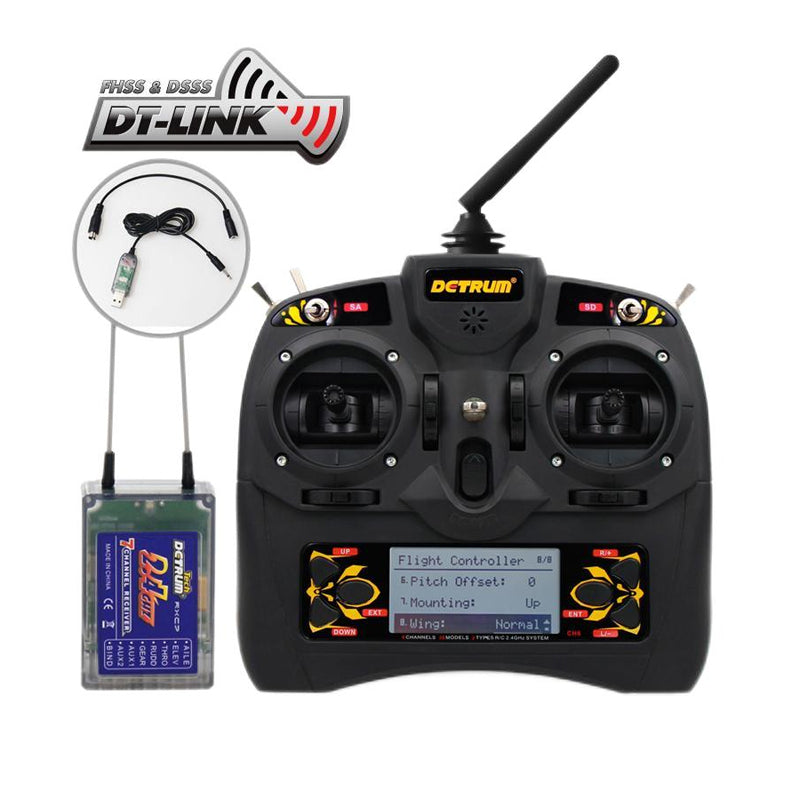

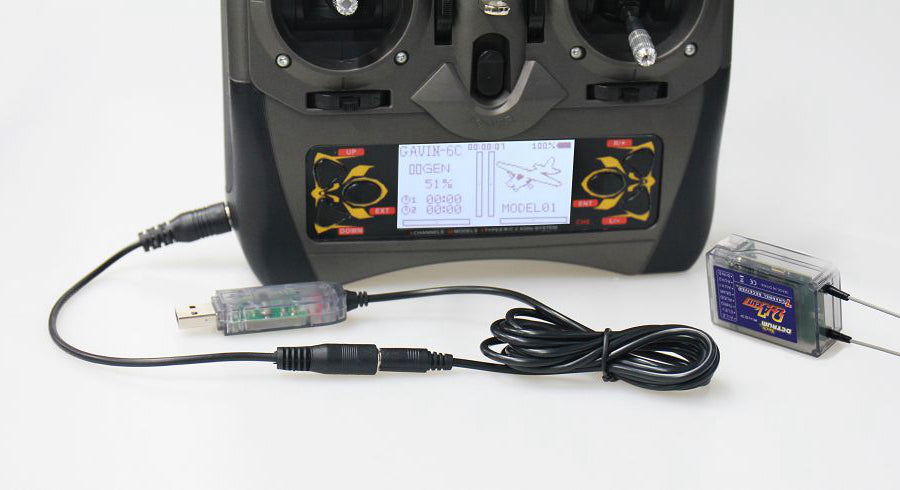

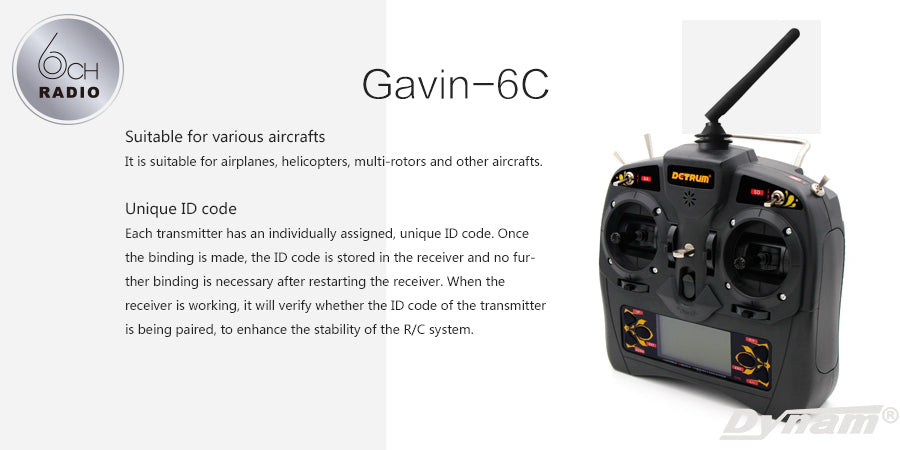

The Detrum GAVIN-6C is a 2.4GHz 6-channel remote controller for RC airplanes, helicopters and multirotors, and is a low-power device with a long battery life. It supports four joystick modes, a trainer mode and a failsafe function for increased safety, and can be continuously updated via a USB upgrade program. In addition, the remote controller uses DSSS and FHSS dual spread spectrum technology, which has good signal stability and anti-interference capabilities even in urban areas.

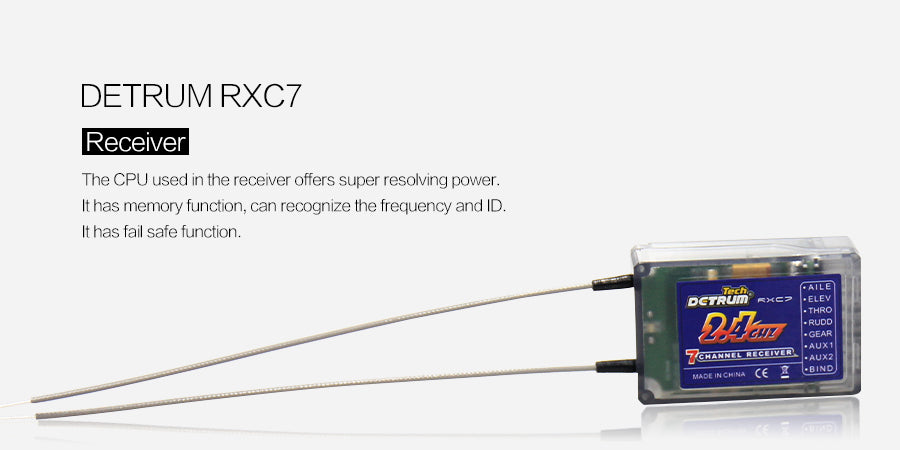

The Detrum RXC7 is a 2.4GHz 7-channel receiver equipped with a diversity antenna to ensure stable signal reception. It has high sensitivity, strong anti-interference and automatic signal switching. The receiver can store the remote controller ID code and activate the failsafe function when the signal is lost, returning the servo to the preset position. The system supports a remote control range of 1.6 km in the air and 1 km on the ground, and can store up to 30 models.
Specifications
GAVIN-6C transmitter
| Channel |
6-channel |
| Transmitting frequency |
2.4GHz |
| Spread spectrum |
DSSS&FHSS |
| Power supply |
AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po |
| Consuming current |
less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode). |
| Output power |
10mW (test mode); 100mW (Operating mode). |
| Output pulse |
1000ms~2000ms (neutral 1500ms) |

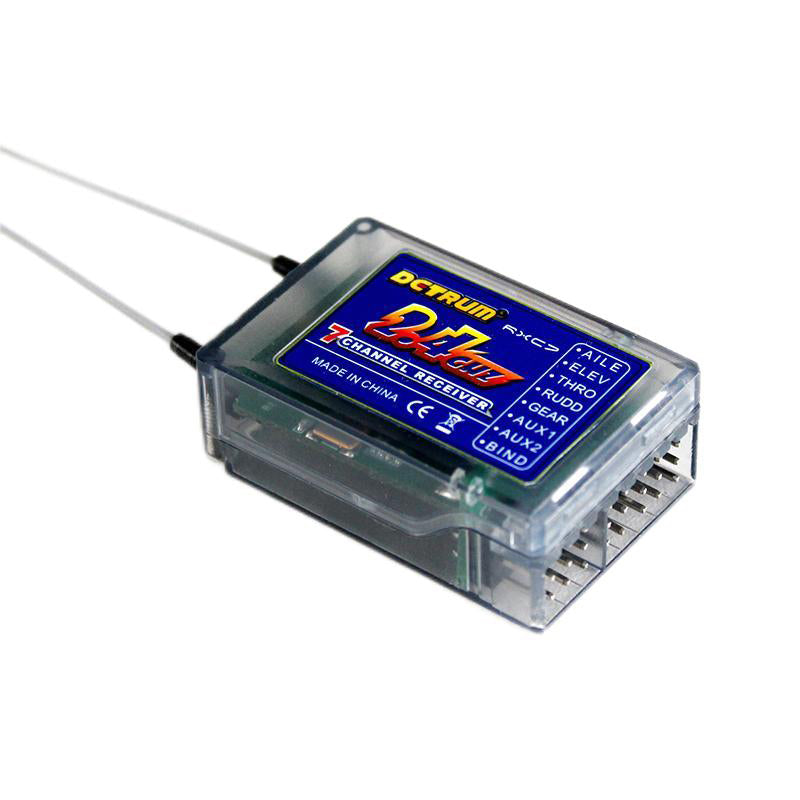

RXC7 receiver
| Type |
2.4GHz 7-channel normal receiver |
| Sensitivity |
-95dBm |
| Frequency interval |
larger than or equal to 4MHz |
| Power supply |
4.8V~6V |
| Weight |
10g |
| Size |
39mm*28.5mm*14.5mm |

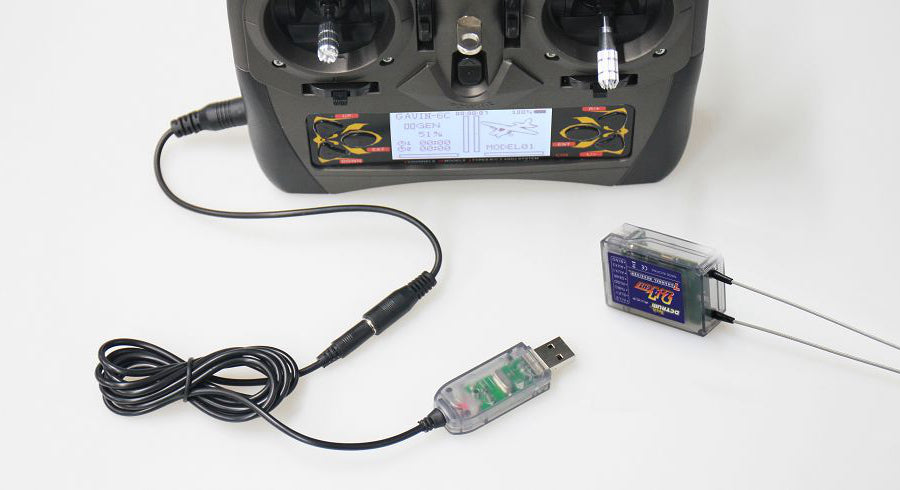

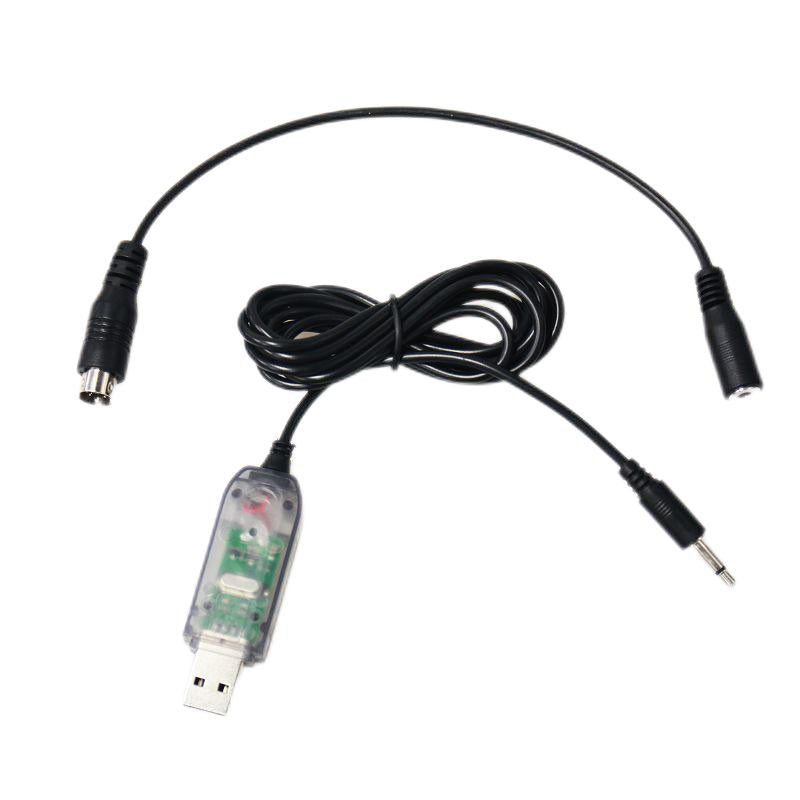

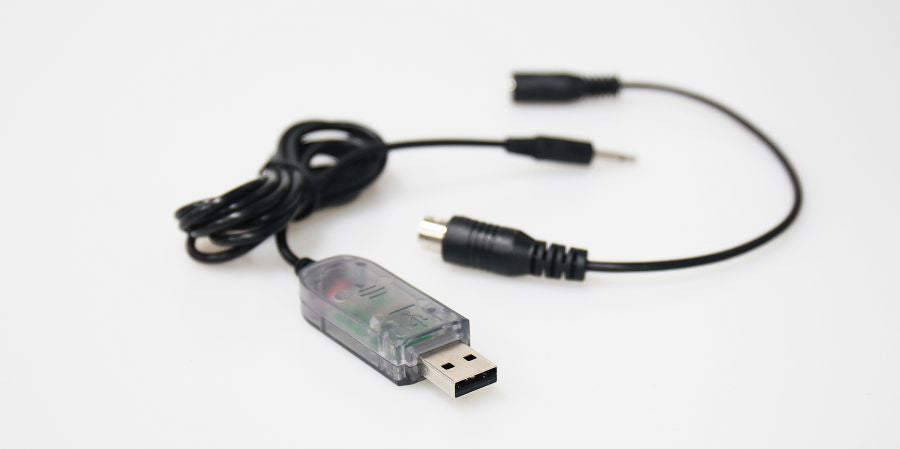

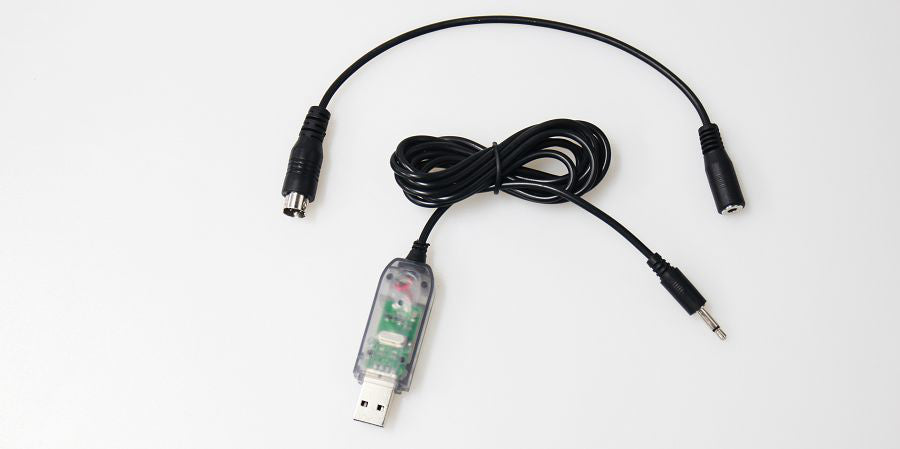

Packing list：Detrum GAVIN-6C transmitter x1，Detrum RXC7 Receiver x1，Bind Plug x1，Introduction Manual x1，USB cable x1
