TomCat G46 5020-680KV Motor w/ Skylord 50A ESC Combo Set
TMC-006
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
This power combo features the Skylord 50A ESC 5V/5A BEC and TomCat TC-G-5020-KV680 (G46) brushless motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

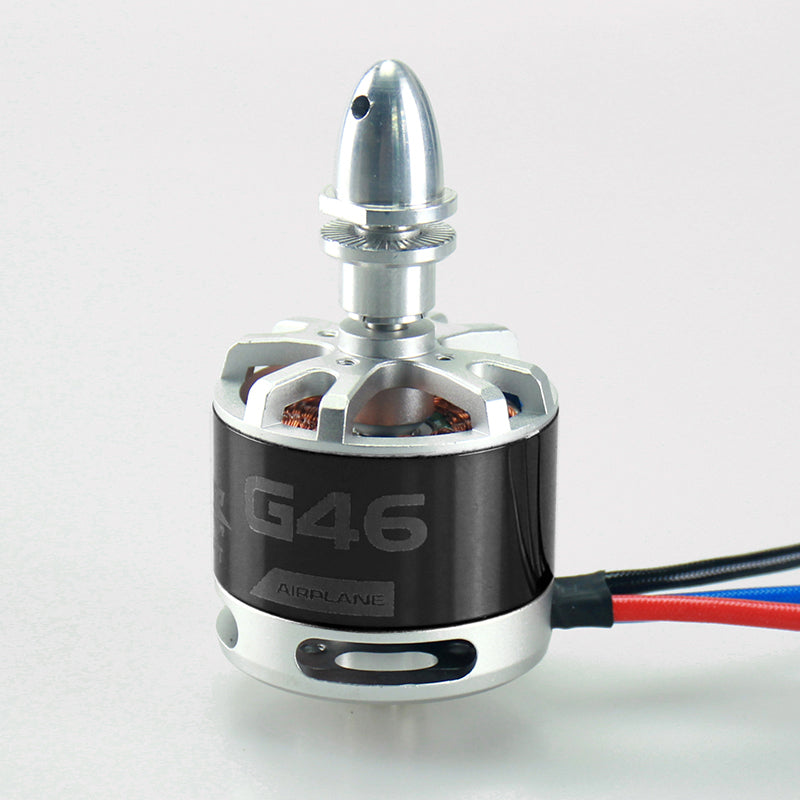

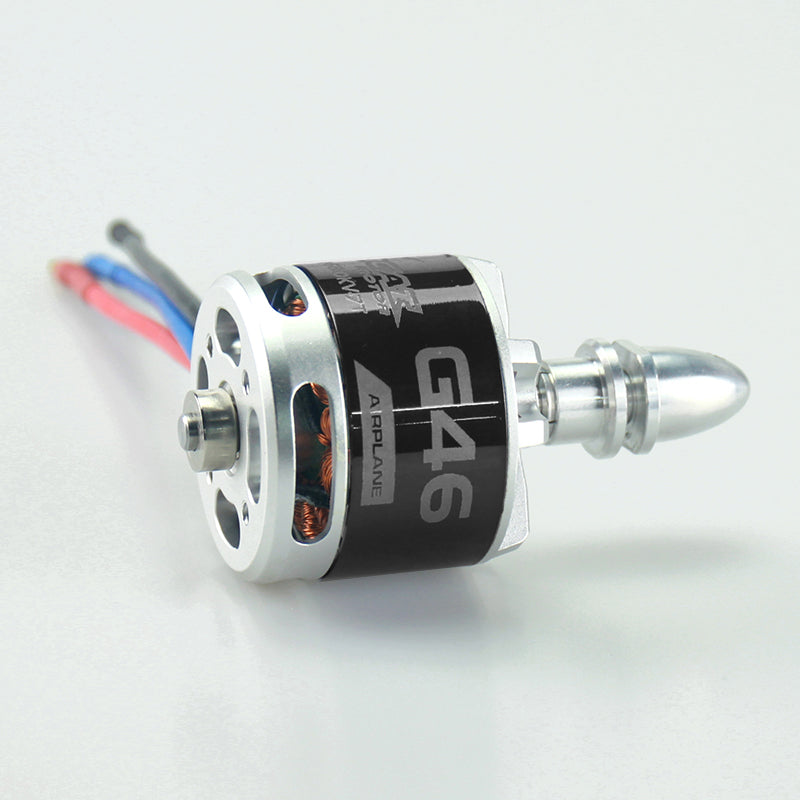

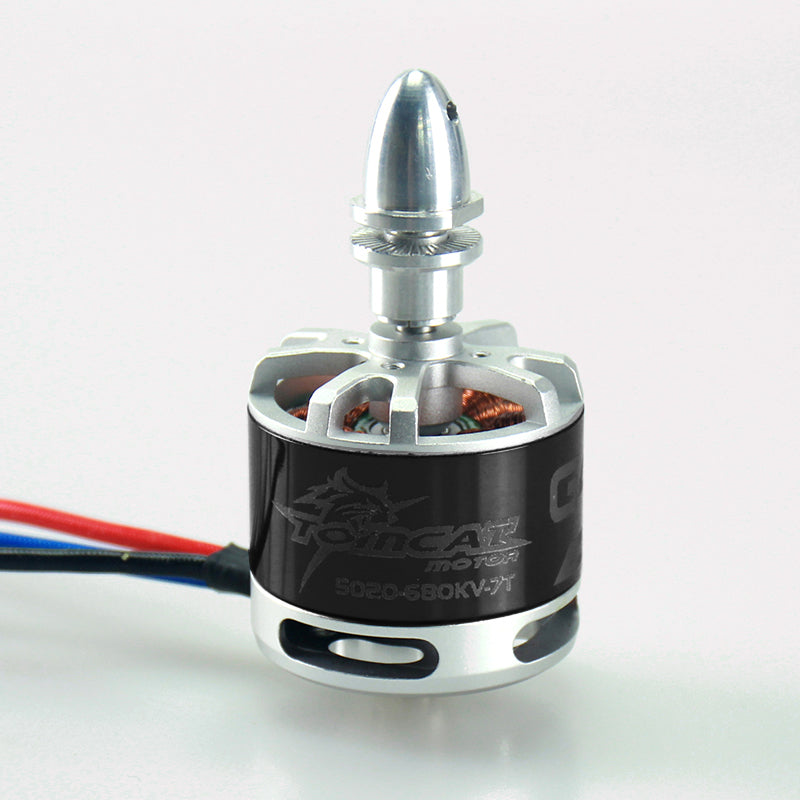

The TomCat G46 5020-680KV Outrunner Brushless Motor is an efficient and powerful replacement for a 46 glow engine. Ideal for new RC builds, it runs on 4-5 cell LiPo batteries and pairs with a 50-60 Amp ESC. Rated at 900 Watts max, it has a suggested amp draw of 42 Amps (58 Amps burst).
This power combo set includes:
- Skylord 50A ESC (with 5V/5A BEC) x1
- TomCat Brushless Motor G46 x1
TomCat G Series Balsa EP Planes Brushless Motor Features:
- High-Strength Aluminum Alloy Casing: Enhances impact resistance.
- Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.
- Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.
- High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.
- N45H Magnets: High torque output, resistant to demagnetization at high temperatures.
- Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.
- Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.
- Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.
- Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.
TomCat G46 Motor Specifications:
- Type: TC-G-5020-KV680 (G46)
- KV(rpms per volt): 680
- No load current: 2.8 A @10V
- Resistance: 0.037 ohms
- Watts: up to 900
- Continuous Current: 42A
- Max Burst Current: 58A,10seconds
- Cells: 4–5 S Li-Po (G46 5020-680KV 4-5 Cell Lipo)
- Recommended Props: 12x8 to 14x10
- Slots,Poles: 12,14
- Motor Outer Dia: 50 mm
- Shaft Dia: 6.0 mm
- Weight: 10.9 oz (310g)
-
Brushless ESC: 50A-60A

Skylord Electronic Speed Controller (ESC) Features:
- The ESC's microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.
- Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.
- Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
- Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).
- Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.
- Selectable timing supports both aircraft and disc-type motors.
- Multiple programmable options to suit various needs.
- Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.
