This power combo features the Skylord 40A ESC 5V/5A BEC and TomCat TC-G-3520-KV980 (G15) motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

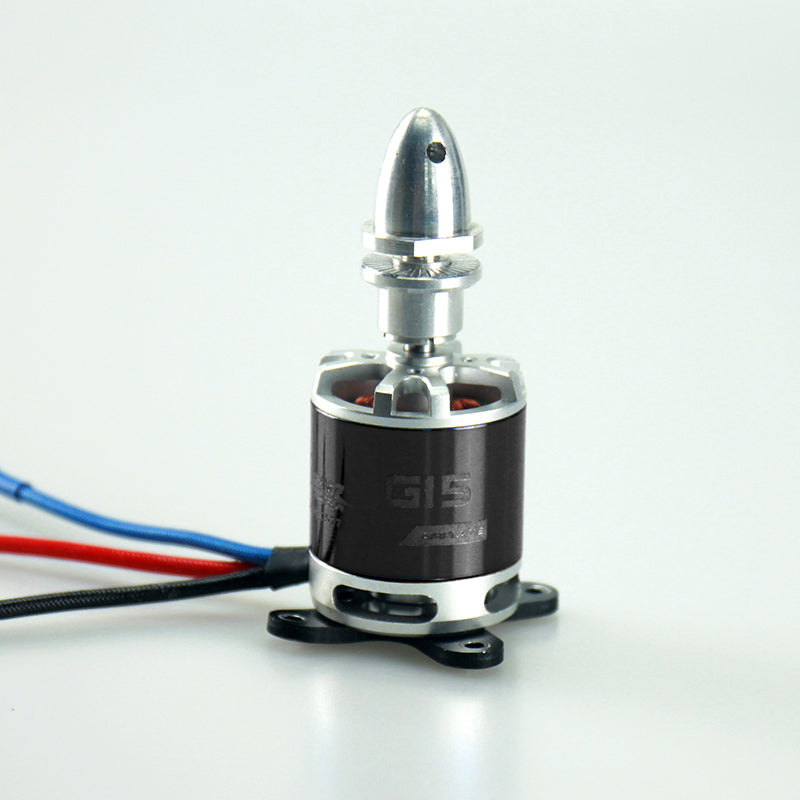

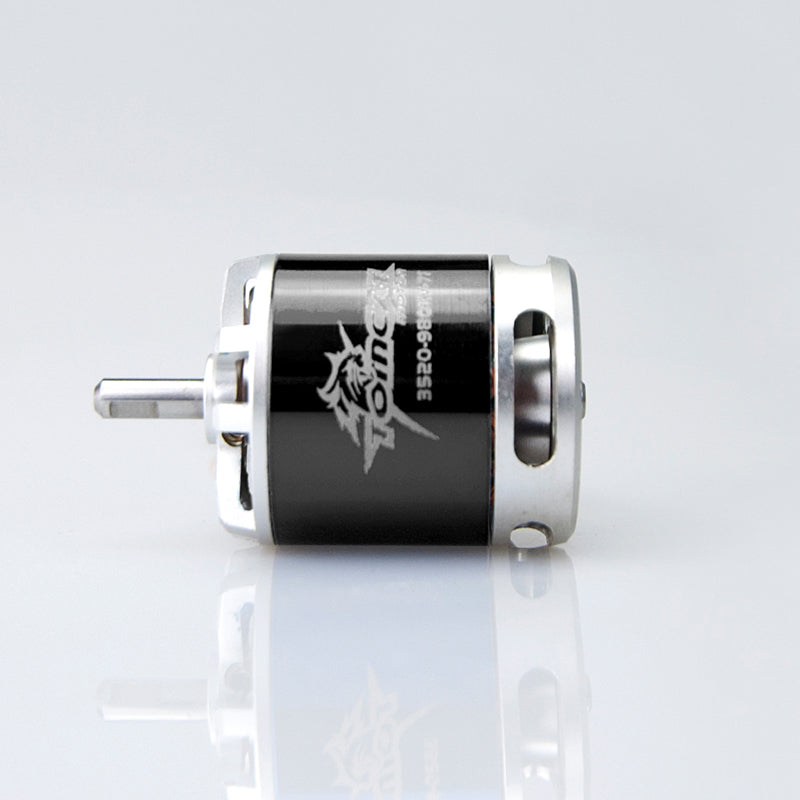

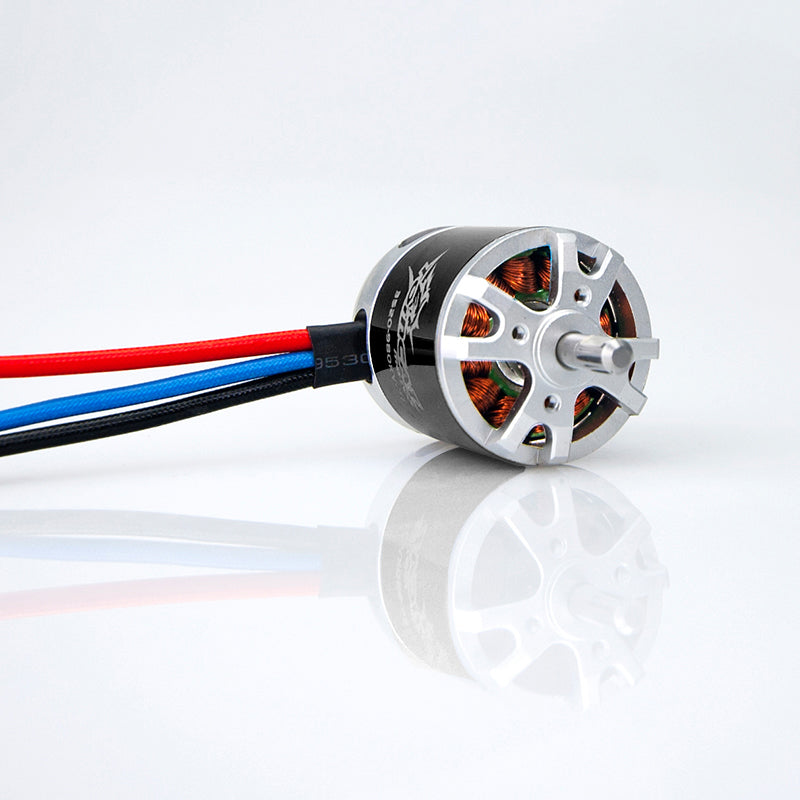

The TomCat G15 3520-980KV Outrunner Brushless Motor is an efficient and reliable replacement for a 15 glow engine. Suitable for 3-4 cell LiPo batteries, pair it with a 40 Amp ESC. It provides 900-1200g of thrust on 10"-13" props with 3 cells, and 1200-2000g with 4 cells. Rated at 440 Watts max, it has a suggested max amp draw of 32 Amps (43 Amps burst).
This power combo set includes:
- Skylord 40A ESC (with 5V/5A BEC) x1
- TomCat Brushless Motor G15 x1
TomCat G Series Balsa EP Planes Brushless Motor Features:
- High-Strength Aluminum Alloy Casing: Enhances impact resistance.
- Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.
- Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.
- High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.
- N45H Magnets: High torque output, resistant to demagnetization at high temperatures.
- Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.
- Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.
- Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.
- Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.
TomCat G15 Motor Specifications:
- Type: TC-G-3520-KV980 (G15)
- KV(rpms per volt):980
- No load current: 2.2 A @10V
- Resistance: 0.033 ohms
- Watts: up to 440
- Continuous Current: 32A
- Max Burst Current: 43A,10seconds
- Cells: 3–4 S Li-Po (3520-7T 980KV 3-4 Cell Lipo)
- Recommended Props: 10x6 to 13x6.5
- Slots,Poles: 12,14
- Weight: 5.1 oz (145g)
- Motor Outer Dia: 35mm
- Shaft Dia: 5mm
- Brushless ESC: 50A
Skylord Electronic Speed Controller (ESC) Features:
- The ESC's microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.
- Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.
- Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
- Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).
- Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.
- Selectable timing supports both aircraft and disc-type motors.
- Multiple programmable options to suit various needs.
- Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.
