Introduced in the 1930s, the Waco YMF-5D is a two-seat, open-cockpit biplane that excels in everything from crop dusting to sport flying.
The Dynam Waco YMF-5D V2 Red Biplane is a beautifully crafted scale replica of this classic American aircraft, with a vibrant Yellow color scheme and exquisite detailing. Made of durable EPO foam, this RC biplane has a 1300 mm (51 in) wingspan and is 983 mm (39 in) long. It is powered by a Detrum BM3720-800KV brushless outrunner motor and features a TomCat Skylord 50A electronic speed controller. Four 9-gram Detrum servos control the nose, and the tailwheel is steerable for taxiing. All the RC aircraft needs is a 4S 14.8V 2200mAh LiPo battery, a GAVIN 6-channel 2.4GHz radio, and an MSR66A 6CH receiver to take off in no time.
Don’t miss out on this extraordinary model – order your Dynam Waco YMF-5D Yellow Biplane today!
Features
Durable and lightweight EPO construction
Aileron, rudder, and elevator controls
Highly scaled and attractive yellow paint scheme plus decal trim sheet
Powerful Detrum BM3720-900KV brushless outrunner motor
TomCat Skylord-50A ESC
2-blade propeller
GAVIN 6CH 2.4GHz radio system
Detrum MSR66A 6CH 2.4Ghz Mini Receiver iStone 6-Axis Gyro Stabilizer w/ ABS System
4S 14.8V 2200mAh Li-Po 25C battery w/ XT60 Connector
Dual cockpit, scale decal set
Suitable for intermediate or experienced pilots
Specifications
Aircraft Type: Biplane
Wingspan: 1270mm (50in)
Overall Length: 983mm (38.7in)
Flying Weight: 1550g (61oz)
Wing Loading: 38.5g/dm²
CG (Center of Gravity): 70-75mm from the leading edge of the wing at the root
Power System: Detrum BM3720-900KV brushless outrunner motor - (pre-installed)
Thrust: 2807g
Electronic Speed Control: TomCat Skylord-50A ESC - (pre-installed)
Propeller: 2-blade propeller 12*6
Servo: 4x 9g micro servos - (pre-installed)
Landing Gear: Fixed
Required Transmitter: GAVIN-6C 2.4Ghz 6-Channel or above
Required Receiver: MSR66A 6CH 2.4Ghz (iStone 6-Axis Gyro Stabilizer w/ ABS System)
Required Battery: 4S 14.8V 2200mAh Li-Po 25C w/ XT60 Connector
Aileron: Yes
Elevator: Yes
Rudder: Yes
Flaps: No
Lights: Yes
Approx. Flying Time: 8 minutes
Material: EPO Foam
Skill Level: Intermediate
Assembly Time: 1 hour
Age Level: 14+
Recommended Environment: Outdoor
What's the difference between RTF, BNF, SPNP and PNP?

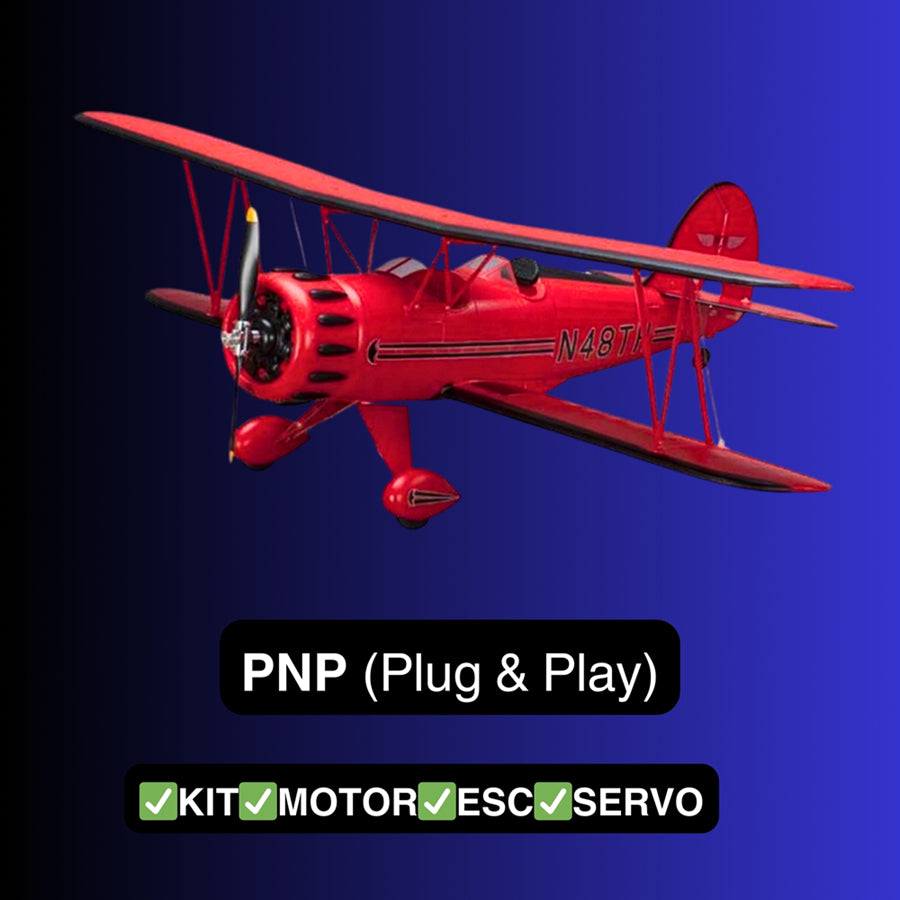

PNP (Plug-N-Play) RC airplanes have everything you need EXCEPT a transmitter, receiver, and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, and servos.

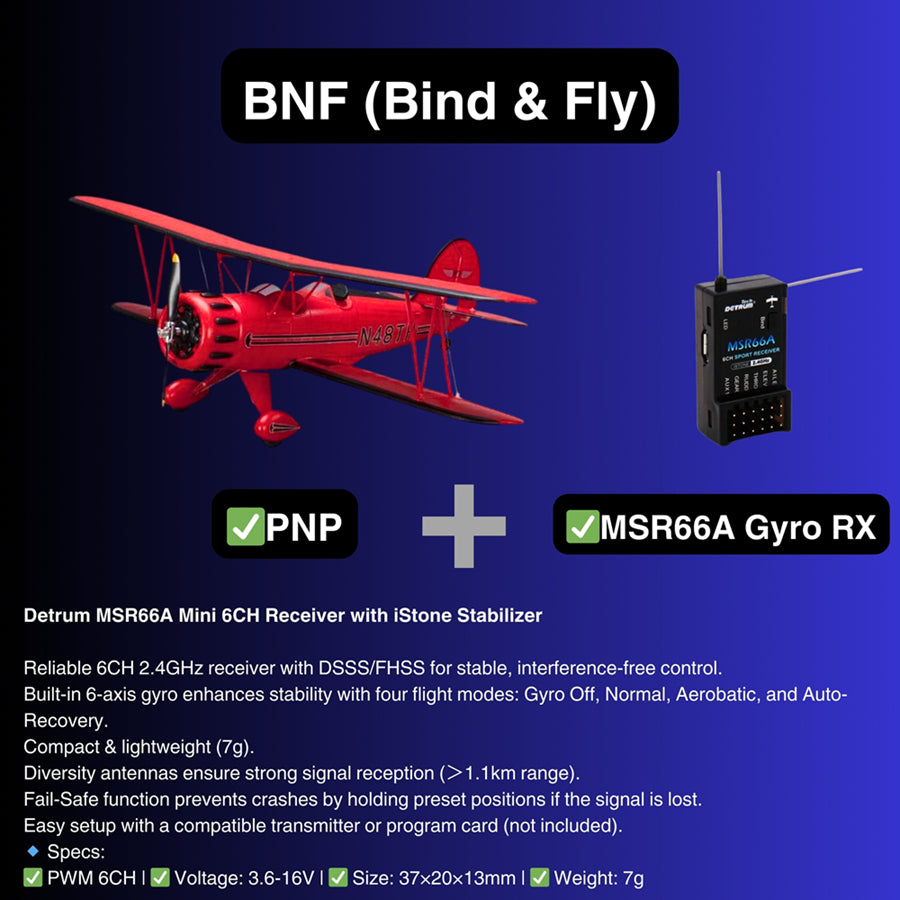

BNF (Bind-N-Fly) RC airplanes come with everything you need to get in the air EXCEPT the Transmitter and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, and an iStone gyro receiver. They are easy to use, versatile, and safe, making them the perfect choice for beginners and experienced pilots. The BNF (Bind and Fly) version, receivers such as the MSR66A work exclusively with Detrum transmitters.

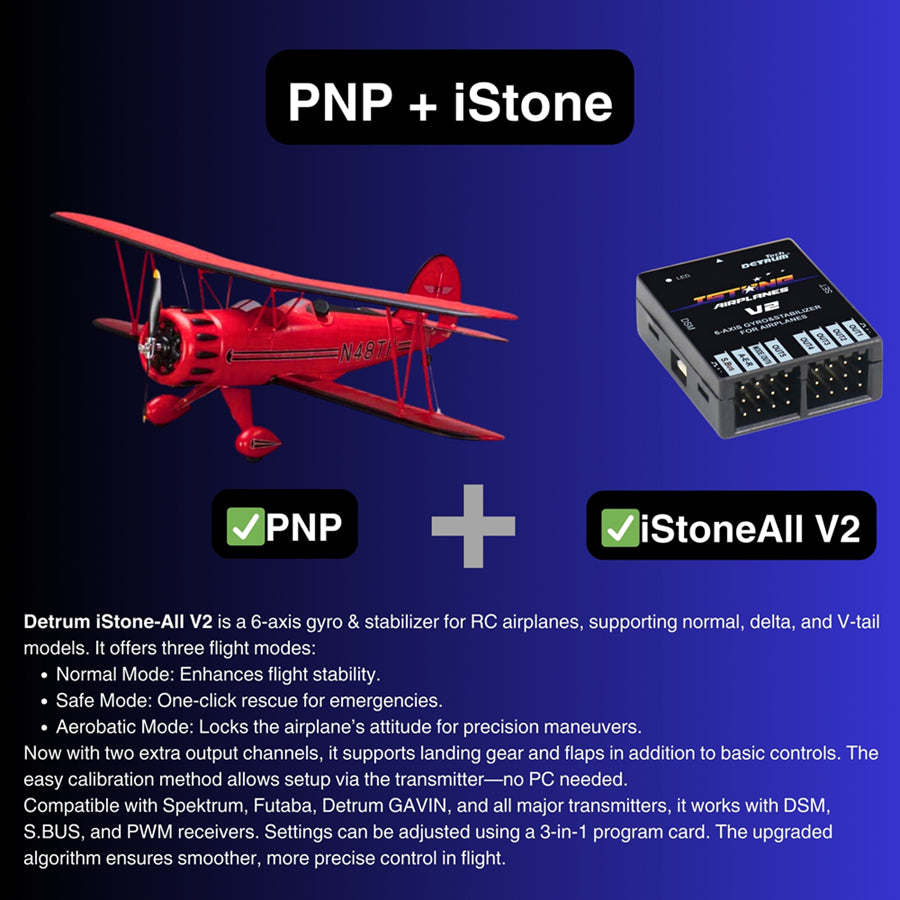

Dynam SPNP (PNP + iStone All V2) RC airplane is a versatile and user-friendly aircraft designed for RC enthusiasts. Combining an easy plug-and-play setup with the advanced iStone stabilization system, it suits a wide range of pilots. The PNP + iStone version includes the iStoneAll V2 6-axis gyro stabilizer, compatible with major radio transmitter brands like Futaba, Spektrum, Detrum, and etc., providing excellent versatility and flight performance.
iStone All V2 Gyro Stabilizer Features:
6-axis high-precision stabilization
Auto-recovery and one-click rescue
Compatible with most receivers
Adjustable parameters and sensitivity via 3-in-1 programming card with LCD
Gyro-off mode for manual flight
The PNP configuration and iStone All V2 stabilization system make this plane ideal for beginners, while offering features appreciated by intermediate pilots.
Dynam SRTF version is based on the standard RTF (Ready to Fly), which integrates the iStone 6-Axis Gyro Stabilizer w/ ABS System: RC airplanes get everything in a box to fly. The radio system (Transmitter and receiver), battery pack (battery and charger), and all other required electric parts are included and pre-installed. It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, Detrum transmitters, iStone gyro receivers, battery, charger, and adapter. RTF planes are a great way to enjoy the thrill of flying without too much hassle.

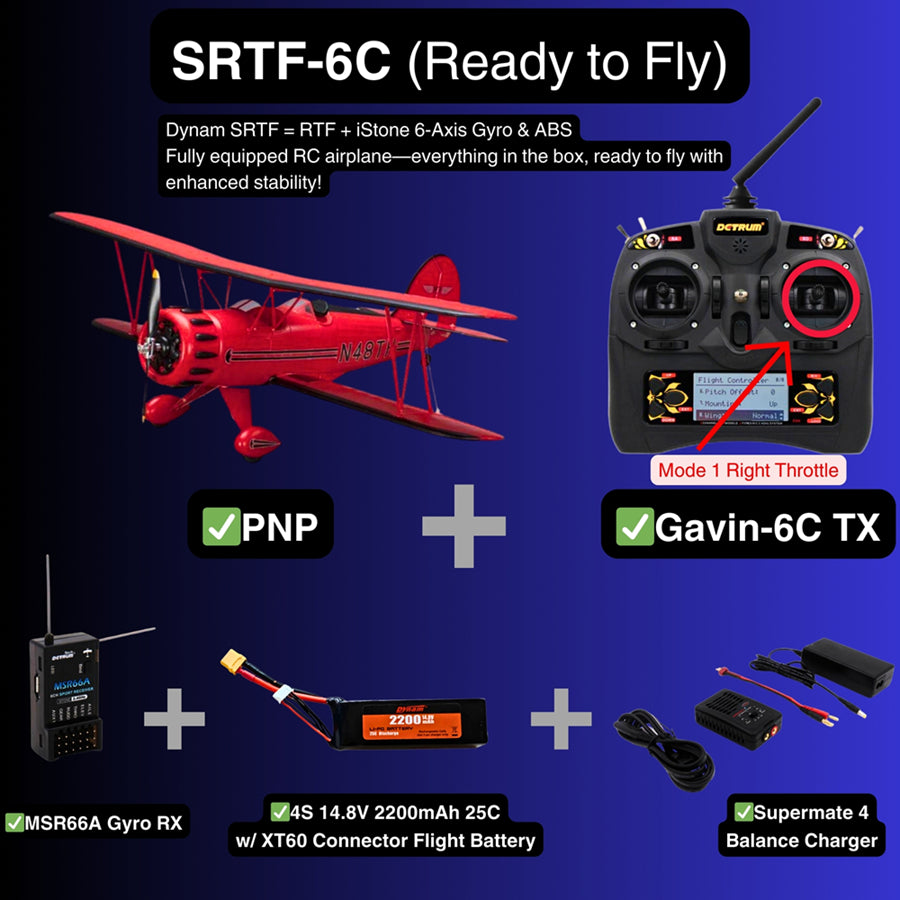

SRTF-6C Version: Includes a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-6C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.
SRTF-8C Version: Features a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-8C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.

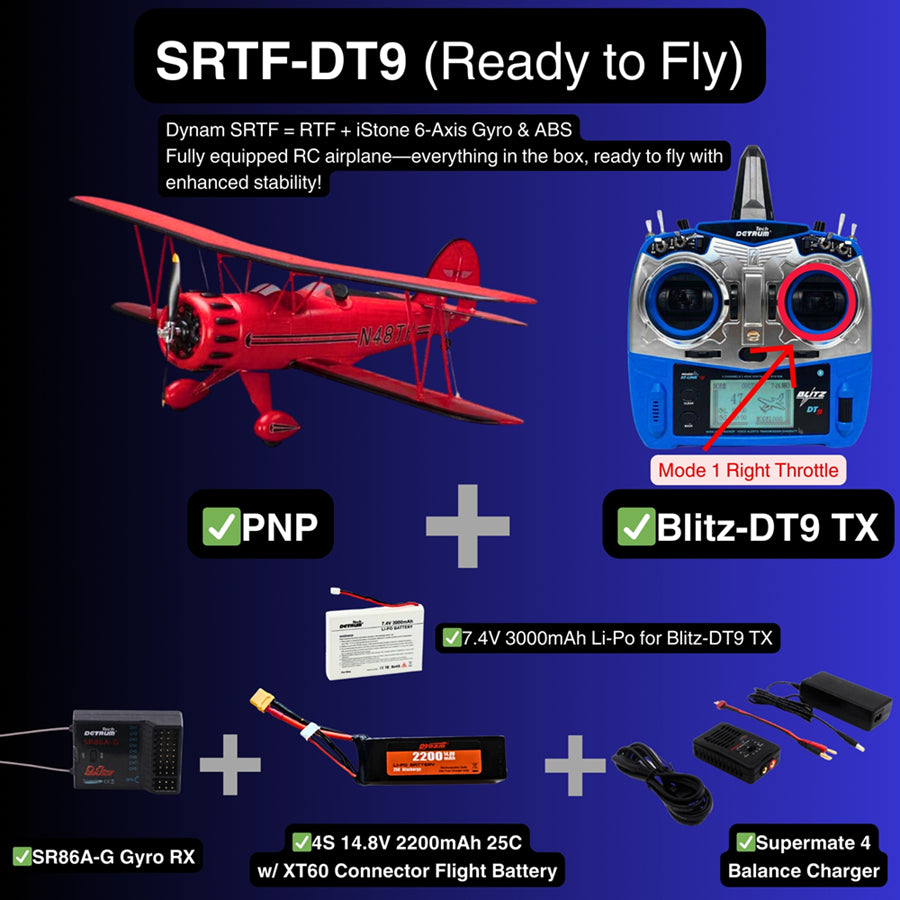

SRTF-DT9 Version: Comes with a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Blitz-DT9 transmitter (programming & telemetry), SR86A-G 8-channel gyro receiver, battery, charger, and adapter.
